MSI Media live

Processor Support . Support AMDR Athlon 64 X2, Athlon 64 and Sempron in the Socket AM2 package.
Supported FSB . HyperTransport supporting speed up to 1GHz (2000MT/s)

. Supports 2 IDE ports by nVidia® MCP51
. Supports Ultra DMA 66/100/133 mode
. Supports PIO, Bus Master operation mode
SATA . Supports 4 SATA2 ports by nVidia® MCP51(2 SATA2 ports only for Media Live)
. Supports storage and data transfers at up to 300 MB/s
. Support RAID 0, 1 or JBOD
Floppy . 1 floppy port
. Supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

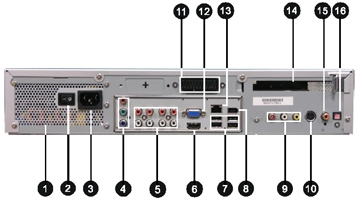

Vstupy/výstupy - Zadní pstrana
- 3 Component Video Out (RGB)
- 8 Audio RCA Out (for 8-channel audio support)
- 1 HDMI
- 1 Digital Video Out (HDMI)
- 4 USB 2.0 Ports
- 1 IEEE 1394 Port
- 3 AV Out
- 1 S-Video Out
- 1 SCART Out
- 1 Graphics Card Out (D-Sub)
- 1 LAN Jack (RJ45)
- 1 Digital Audio Out (Coaxial)
- 1 Digital Audio Out (Optical)

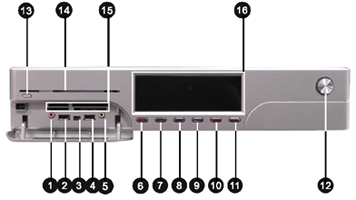

Přední Panel
- 1 Headphone (Green)
- 1 Microphone (Pink)
- 1 IEEE 1394 Port
- 2 USB 2.0 Ports
- 4 Slots 3.5" Memory Card Reader
. On-Board Pinheaders
- 2 USB 2.0 Pinheaders
- 1 CD-In Pinheader
- 1 TV-Out Pinheader
- 2 SPDIF-Out/In Pinheaders
- 1 Graphics Card Pinheader
VFD VFD (integrated Bluetooth v2.0+EDR and Wi-Fi/IEEE802.11b+g, Optional)
Slots . 1 PCI slot
. Supports 3.3V / 5V PCI bus Interface
Form Factor . Standard Micro-ATX (24.4 cm X 24.4 cm)
Mounting . 8 mounting holes Koupit
